SLF7055T-4R7N3R1-3PF
Manufacturer:
TDK Corporation
Mfr.Part #:
SLF7055T-4R7N3R1-3PF
Datasheet:
Description:

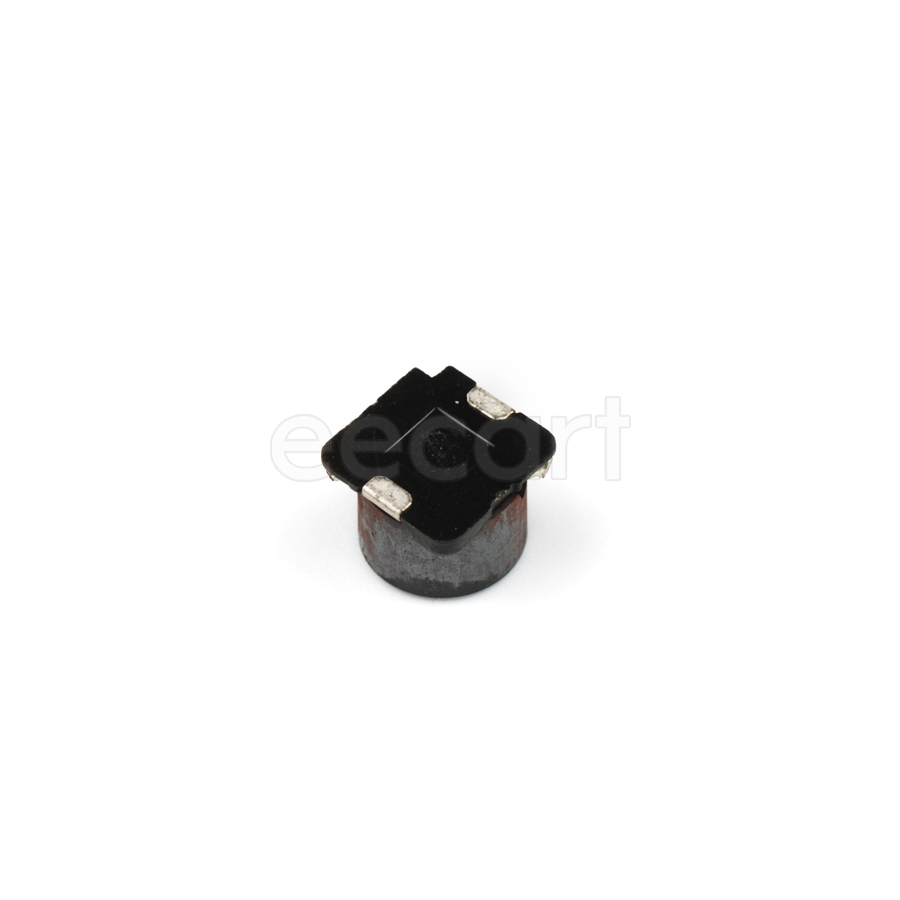

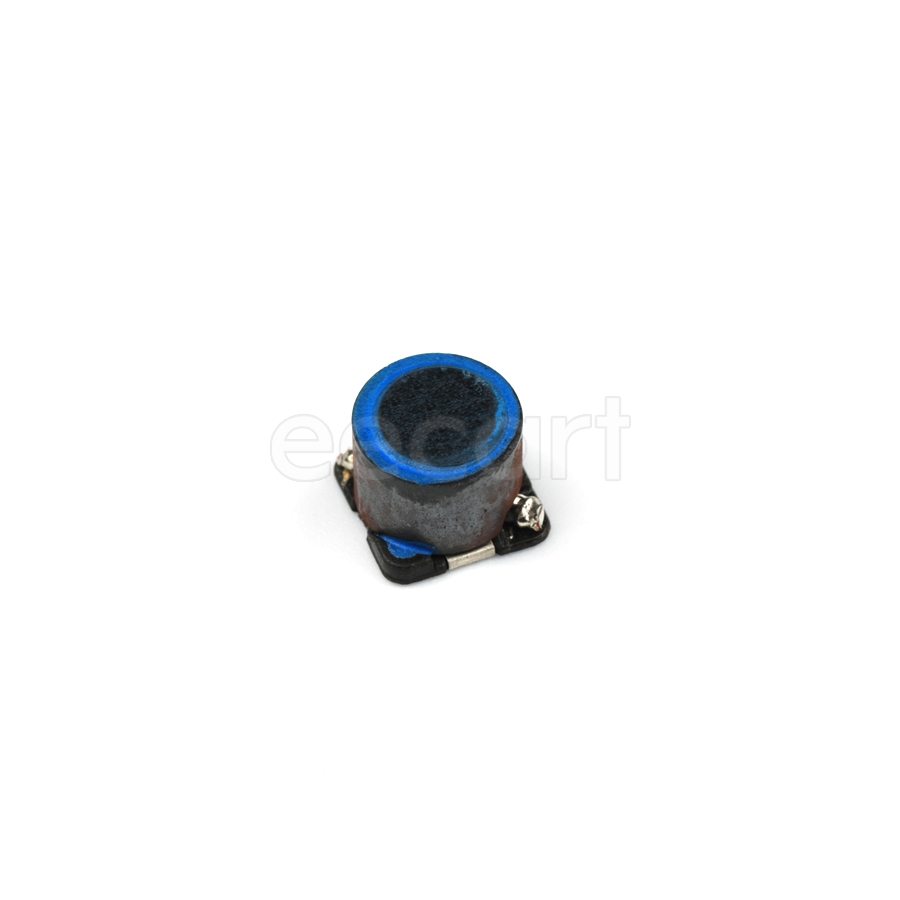

Fixed Inductors SMD,7.00mm×7.00mm×5.50mm SMD/SMT 4.7 µH 30 % 3.1 A 28 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 5.8 mm |
| Length | 7.0104 mm |
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 5.5 mm |
| Packaging | Reel |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 3.1 A |
| DC Resistance (DCR) | 28 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.1 A |
| inductance tolerance | 30 % |
| Max DC Current | 3.1 A |
| DC Current | 3.1 A |
| Saturation Current | 3.6 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 556
Distributors
pcbx
pcbxUnit Price$0.23222
Ext.Price$0.23222
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23222 | $0.23222 |
| 10 | $0.20635 | $2.06350 |
| 50 | $0.18336 | $9.16800 |
| 100 | $0.16850 | $16.85000 |
| 500 | $0.15484 | $77.42000 |
| 1000 | $0.14229 | $142.29000 |
| 3000 | $0.13075 | $392.25000 |
| 5000 | $0.12015 | $600.75000 |
